Bringing Apple Pay to the web

Using Apple Pay on the web from just-eat.co.uk

Using Apple Pay on the web from just-eat.co.uk.

Introduction

Back in June at WWDC, Apple announced that Apple Pay was expanding its reach. No longer just for apps and Wallet on TouchID compatible iOS devices and the Apple Watch, it would also be coming to Safari in iOS 10 and macOS Sierra in September 2016.

Just Eat was a launch partner when Apple Pay was released in the UK in our iOS app in 2015. We wanted to again be one of the first websites to support Apple Pay on the web by making it available within just-eat.co.uk. Our mission is to make food discovery exciting for everyone – and supporting Apple Pay for payment will make your experience even more dynamic and friction-free.

Alberto from our iOS team wrote a post about how we introduced Apple Pay into our iOS app last year, and this post follows on from that journey with a write-up of how we went about making Apple Pay available on our website to iOS and macOS users with the new Apple Pay JS SDK.

Getting set up

In the iOS world, due to the App Store review process and signed entitlements, once your app is in users’ hands you just use PassKit to get coding to accept payments. For the web things are a little different.

Due to the more loosely-coupled nature of the integration, instead trust between the merchant (Just Eat in our case) and Apple is provided through some additional means:

  • A valid SSL/TLS certificate
  • A validated domain name to prove a merchant owns a given domain
  • A Merchant Identify Certificate



As we already use Apple Pay here at Just Eat, the first few steps for getting up and running have already been achieved. We already have an Apple developer account and a merchant identifier via our iOS app development, and the Just Eat website is already served over HTTPS, so we have a valid SSL/TLS certificate.

We also do not need to worry about decrypting Apple Pay payment tokens ourselves. We use a third-party payment provider to offload our payment processing, and internal APIs for passing an Apple Pay token for processing via our payment provider already exists for handling iOS payments, so the website can integrate with those as well.

To get up and running and coding end-to-end, we need just need a Merchant Identity Certificate. This is used to perform two-way TLS authentication between our servers and the Apple Pay servers to validate the merchant session when the Apple Pay sheet is first displayed on a device.

The first step in getting a Merchant Identify Certificate is to validate a domain. This involves entering a domain name into the Apple Pay Developer Portal for the merchant identifier you want to set up Apple Pay on the web for – where you then get a file to download. This is just a text file that verifies the association between your domain and your merchant ID. You just need to deploy this file to the web server(s) hosting your domain so Apple can perform a one-time request to verify that the file can be found at your domain.

You need to do this for all domains you wish to use Apple Pay for, including internal ones for testing, so you may have to white list the Apple IP addresses so that the validation succeeds.

Once you have validated at least one domain, you can generate your Merchant Identify Certificate for your Merchant Identifier. This requires providing a Certificate Signing Request (CSR).

Uploading the CSR file in the Apple Developer Portal will generate a certificate file (merchant_id.cer) for you to download. This acts as the public key for your Merchant Identify Certificate. The private key is the CSR you provided. In order to create a valid TLS connection to the Apple Pay merchant validation server, you will need to create a public-private key pair using the CSR and the CER files, such as using a tool like OpenSSL. In our case we generated a .pfx file for use with .NET. Make sure you keep this file secure on your server and don’t expose it to your client-side code.

Separating concerns

So now we’ve got a validated domain and a Merchant Identify Certificate, we can start thinking about implementing the JavaScript SDK. At a high-level the components needed to create a working Apple Pay implementation in Safari are:

  1. JavaScript to test for the presence of Apple Pay, display the Apple Pay sheet and to respond to user interactions and receive the payment token
  2. CSS to render the Apple Pay button on a page
  3. An HTTPS resource to perform merchant validation


From the user’s point of view though, it’s just a button. So rather than add all the code for handling Apple Pay transactions directly into the codebase of our website, we decided instead to contain as much of the implementation as
possible in a separate service. This service presents its own API surface to our website, abstracting the detail of the Apple Pay JavaScript SDK itself away.

The high-level implementation from the website’s point of view is therefore like this:

  1. Render a hidden div on the appropriate page in the checkout flow to represent the Apple Pay button as well as some meta and link tags to drive our JavaScript API
  2. Reference a JavaScript file from the Apple Pay service via a script tag
  3. Provide some minimal CSS to make the Apple Pay button size and colour appropriate to the current page
  4. Call a function on our JavaScript API to test for whether Apple Pay is available
  5. If it is, call a second function passing in some parameters related to the current checkout page, such as the user’s basket, the DOM element for the div representing the Apple Pay button and some callback functions for when the payment is authorised, fails or an error occurs.


The rest of the Apple Pay implementation is handled by our JavaScript abstraction so that the Just Eat website itself never directly calls the Apple Pay JavaScript functions.

Our new Apple Pay service itself should have the following responsibilities:

  • Serve the JavaScript file for the abstraction for the website
  • Serve a file containing the base CSS for styling the Apple Pay button
  • Provide HTTP resources that support Cross Origin Resource Sharing (CORS) to:
    1. Provide the payment request properties to set up an Apple Pay sheet
    2. Validate merchant sessions
    3. Verify that a restaurant partner delivers to the selected delivery address
    4. Receive the Apple Pay payment token to capture funds from the user and place their order


Separating the CSS, JavaScript and back-end implementation allows us to decouple the implementation from our website itself allowing for more discrete changes. For example, the current Apple Pay version is 1. By abstracting things away we could make changes to support a future version 2 transparently from the website’s point-of-view.

Delving into the implementation

As mentioned in the high-level design above, integrating Apple Pay into a website requires a mix of client-side and server-side implementation. We need to implement some JavaScript, make some CSS available and provide some server-side HTTP resources to handle merchant validation of payment processing. There’s also some HTTP meta and link tags you can add to enhance your integration.

Let’s delve into the different layers and things we need to add…

HTML

Well first we need an Apple Pay button. You can add one with some HTML like this:

Ignore the apple-pay-* CSS classes for now as I’ll come back to them, but the hide class (or some other similar approach) ensures that the div for the button is not visible when the page first loads. This allows us to display it as appropriate once we have detected that Apple Pay is available in the browser using JavaScript.

HTML metadata

Apple Pay supports a number of different HTML meta and link tags that you can use to improve the user experience for your integration.

First, there’s some link tags you can add to provide an icon for use on an iPhone or iPad when a confirmation message is shown to the user initiating a payment from macOS:

These link elements can even be added dynamically by scripts when you detect the Apple Pay is available, provided that they are in the DOM before you create an ApplePaySession object.

There’s also some meta tags you can add so that crawlers (such as Googlebot can identify your website as supporting payment through Apple Pay:

Integrating the Apple Pay JavaScript SDK

So now we’ve got the HTML for the Apple Pay button and some metadata tags, we need some JavaScript to drive the integration.

In our case we have placed all of our Apple Pay-related JavaScript into a single file. This allows us to use server-side feature flags to decide to render the script tag for it (or not), so that the relevant file is only fetched when the feature is enabled.

Within this JavaScript file, there are functions for dealing with the Apple Pay workflow and calling the Safari functions in the browser.

The psuedo-code for an implementation within a consuming website would be:

First we have functions in je.applePay that contain simple functions for feature detection. For example, the isSupportedByDevice() function tests if the current browser supports Apple Pay at all, where as the isSupportedForCheckout() function additionally tests if the Just Eat specific information (such as the ID of the basket to pay for) is available to the current page.

The controller is the top-level object in our abstraction that the containing page uses to handle the Apple Pay payment flow. This handles things so that when the user clicks the Apple Pay button, we create an Apple Pay session with the appropriate payment information, do callbacks to the server to validate the merchant session and capture payment – and invoke the website-supplied callback functions when the payment process ends.

Within our abstraction, we use the ApplePaySession object to drive our integration. For example, to test for Apple Pay support, we use code similar to this (logging removed for brevity):

Assuming that the device supports Apple Pay then we’ll want to display the Apple Pay button. However before we do that we’ll need to wire-up an onclick event handler to invoke the JavaScript to handle the payment process itself when it is clicked or pressed. For example with jQuery:

Now the Apple Pay button will be displayed. The rendering of the button itself is handled by the CSS provided by Apple. There are four possible variants. First there’s a choice between a black or a white button, then there’s the choice of either an Apple Pay logo only, or the logo prefixed by “By with” (CSS).

The logo itself is provided by resources built into Safari, such as shown in this snippet:

The CSS file for this is loaded dynamically by our JavaScript abstraction so users with devices that do not support Apple Pay do not pay the penalty of a network request to get the CSS file. This also removes the need for the consuming website to explicitly load the CSS itself with a link tag and allows the location of the CSS file itself to be modified at any time in our Apple Pay service.

So when the user either taps or clicks the button, that’s when the work to start the Apple Pay session begins. First you need to create a properly set up payment request object to create an instance of ApplePaySession along with the Apple Pay version (currently 1).

Be careful here – Apple Pay only allows an ApplePaySession object to be created when invoked as part of a user gesture. So, if you want to do any interaction with your server-side implementation here, ensure you do not make use of asynchronous code such as with a Promise object. Otherwise creating the ApplePaySession may occur outside the scope of the gesture handler, which will cause a JavaScript exception to be thrown and the session creation to fail.

We haven’t done enough to show the sheet yet though. Next we need to register the callback functions for the events we want to receive callbacks for. At a minimum you will need two of these:


onvalidatemerchant is called after the sheet is displayed to the user. It provides you with a URL to pass to the server-side of your implementation to validate the merchant session.

An example of how you could do this in jQuery is shown in the snippet below:

onpaymentauthorized is called after payment is authorised by the user either with a fingerprint from an iPhone or iPad or by pressing a button on their Apple Watch. This provides the payment token for capturing the funds from the user.

An example of how you could do this in jQuery is shown in the snippet below:

The functionality to actually capture funds from the user is outside the scope of this blog post – information about decrypting Apple Pay payment tokens can be found here.

There’s also events for payment selection, shipping method selection, shipping contact selection and cancellation. This allows you to do things such as:

  • Dynamically adjust pricing based on payment method or shipping address
  • Validate that the shipping address is valid, for example whether a restaurant delivers to the specified shipping address


Note that before the payment is authorised by the user, not all of the shipping contact and billing contact information is yet available to you via the parameters passed to the event handlers. For example, the country, locality (eg a city or town), administrative area (eg a county or state) and the first part of the postal code (eg outward code in the UK, such as EC4M 7RF). This is for privacy reasons as before the user authorises the payment it is still a request for payment, and as such the full information is only revealed to use you the integrator by the onpaymentauthorized event.

Once you’ve registered all your event handlers, you just need to call the begin function to display the Apple Pay sheet.

HTTP resources

Our server-side implementation has 4 main resources that we consume from our JavaScript code for all flows:

  1. GET /applepay/metadata
  2. GET /applepay/basket/{id}
  3. POST /applepay/validate
  4. POST /applepay/payment


The metadata resource is used to test whether Apple Pay is available on the current domain (for example www.just-eat.co.uk). The JSON response returned indicates whether the Apple Pay feature is enabled for the referring domain, the merchant capabilities, the supported payment networks, the country and currency code and the available Apple Pay touch icons and their URIs. This allows our JavaScript example to build up the link tags for the touch icons dynamically, deferring the need for them until necessary.

The basket resource is used to fetch details about the user’s current basket so that we can render the Apple Pay sheet to show the items for their order, the total, the shipping method and the required shipping contact fields. For example, we require the user’s postal address for delivery orders but that isn’t required for collection orders. This removes the need for the JavaScript to determine any of this information itself, as it can just copy the fields into the payment request object for the ApplePaySession constructor directly from the JSON response.

The validate resource is used to implement the merchant session validation with the Apple Pay servers. This posts the Apple validation URL to our back-end which then calls the specified URL using the Merchant Identify Certificate associated with the requesting domain to validate the merchant session. The JSON response then returns a MerchantSession dictionary for consumption by the JavaScript to pass to the completeMerchantValidation function.

The payment resource is used to POST the encrypted payment token, as well as the basket ID and billing and shipping contact details to our server to place the order. This resource then returns either an order ID (and optionally a token if a guest user account was created) if the payment was authorised successful or an error code otherwise.

For delivery orders we also have a POST /applepay/basket/{id}/validatepostalcode resource to check that the user’s chosen shipping address can be delivered to.

Merchant Validation

Initiating the POST to Apple’s servers to validate the session is relatively simple in ASP.NET Core (more about that later), provided you’ve already performed the steps to create a .pfx file for your Merchant Identify Certificate.

First we need to load the certificate, whether that’s from the certificate store or from a file on disk. In our service we store the certificate as an embedded resource as we have multiple certificates for different environments, but the simplest form is loading from disk.

This was the approach I was using in some local initial testing, but when I deployed the code to a Microsoft Azure App Service to leverage the free SSL certificate, this stopped working. After some digging around I found that this was because on Windows you need to be able to load the user profile to access private keys in certificates, and this isn’t possible by default in IIS as it isn’t loaded. This is easy enough to fix when you have full control of the infrastructure (such as our Amazon Web Services (AWS) Elastic Cloud Compute (EC2) instances), but there’s no option available to enable this in Azure.

Luckily there is a way around this. First, you upload the certificate that has a private key that you wish to use to the App Service using the “SSL certificates” tab in the Azure Portal. Next, you add the WEBSITE_LOAD_CERTIFICATES App setting to the “Application settings” tab and set its value to the thumbprint of the certificate you want to use. This causes the App Service to make the specified certificate available in the “My” store in the “Current User” location so it can be read by the identity associated with the IIS App Pool. Note that the validOnly parameter value is set to false; if it is not the Merchant Identifier Certificate will not be loaded as it is not considered valid for use by Windows, even though it is valid from Apple’s perspective.

The next step in the merchant validation process is to construct the payload to POST to the Apple server. For this we need our domain name, the store display name (in our case “Just Eat”) and the merchant identifier. While we could configure the merchant identifier to use per domain, we can be smart about it and read it from the Merchant Identifier Certificate instead. Thanks to Tom Dale’s node.js example implementation, we discovered that this can be found from the 1.2.840.113635.100.6.32 X.509 extension field, so we can read it out of our X509Certificate2 like so:

Now we can POST to the validation URL we received from the JavaScript. As mentioned previously we need to provide the Merchant Identifier Certificate with the request for two-way TLS authentication. This is achieved by using the HttpClientHandler class which provides a ClientCertificates property where we can use our certificate, and then pass it into the constructor of HttpClient to handle authentication for use when we POST the data:

Assuming we get a valid response from the Apple server, then we just need to deserialise the JSON containing the merchant session and return it to the client from our API controller method:

Now our JavaScript needs to consume the response body as mentioned earlier in the JavaScript implementation to pass it to the ApplePaySession.completeMerchantValidation function to allow the user to authorise the payment.

New Tricks with ASP.NET Core

When we started implementing Apple Pay for our website, ASP.NET Core 1.0.0 had just been released, and as such we were running all our C#-based code on the full .NET Framework. We decided that given the relatively small size and self-contained nature of the service for Apple Pay (plus there being no legacy code to worry about) that we’d dip our toes into the new world of ASP.NET Core for implementing the service for Apple Pay.

There are a number of capabilities and enhancements of ASP.NET Core that made it attractive for the implementation, but the main one was the improved integration with client-side focused technologies, such as Bower, Gulp and npm. Given that a bulk of the implementation is in JavaScript, this made it easier to use best-practice tools for JavaScript (and CSS) that provide features such as concatenation, minification, linting and testing. This made implementing the JavaScript part of the integration much easier to implement that the equivalent workflow in an ASP.NET MVC project in Visual Studio.

Getting cut at the bleeding edge

Of course, going with a new version of a well-established technology isn’t all plain-sailing. There’s been a few trade-offs moving to ASP.NET Core that have made us go back a few steps in some areas. These are gaps we hope to address in the near future to obtain feature parity with our existing ASP.NET applications. Some of these trade-offs are detailed below.

Dependencies

Here at Just Eat we have a variety of shared libraries that we add as dependencies into our .NET applications to share a common best-practice and allow services to focus on their primary purpose, rather than also have to worry about boiler-plate code, such as for logging, monitoring and communicating with other Just Eat services over HTTP.

Unfortunately a number of these dependencies are not quite in the position to support consumption from .NET Core-based applications. In most cases this is due to dependencies we consume ourselves not supporting .NET Core (such as Autofixture used in tests), or using .NET APIs that are not present in .NET Core’s surface area (such as changes to the UdpClient class).

We’re planning to move such libraries over to support .NET Core in due course (example), but the structure of the dependencies makes this a non-trivial task. The plan is to move our Apple Pay service over to versions of our libraries supporting .NET Core as they become available, for now it uses its own .NET Core forks of these libraries.

Monitoring

At Just Eat we have a very mature monitoring and logging solutions using Kibana and Grafana, amongst other tools. Part of our monitoring solution involves a custom service that is installed on our AWS EC2 Amazon Machine Images (AMIs) which collects performance counter data to publish to StatsD.

Unfortunately ASP.NET Core does not currently implement performance counters on Windows. In ASP.NET, there are various performance counters available that we collect as part of our monitoring, such as the number of current IIS connections, request execution times, etc. Even though ASP.NET Core can be hosted via IIS, because the .NET Framework is not used, these performance counters are of no use when it comes to monitoring an ASP.NET Core application.

Testing the implementation

So once we’ve gotten our server-side implementation to get details for rendering the Apple Pay sheet, validating merchant sessions and processing payment in place, as well as our JavaScript abstraction and base CSS, we can start going about testing it out.

But how do we test Apple Pay without using our own personal credit/debit card?

Luckily with iOS 10, watchOS 3 and macOS Sierra, Apple have provided us with a way to do this. It’s called the Apple Pay Sandbox. This provides us with a way to set up users with “real” payment cards that allow us to test transaction processing (at least up to the point of trying to capture funds). You can find more details on the website, but the main steps are:

  1. Setup a sandbox tester account in iTunes Connect
  2. Sign into iCloud on your test device(s) using your sandbox tester
  3. Add one or more test card(s) to Wallet on you test device(s)



Using the Apple Pay sandbox then allows you to test as many transactions as you like on your test devices without worrying about spending a fortune or misplacing your personal payment card details.

Stubbing Out the SDK

With the majority of Just Eat’s back-end services (and our website) being written in ASP.NET, this posed a bit of a challenge for testing. Of course the interactions with the sheet and the rendering need to be tested on a real Apple Pay-supporting device, but how could we run the full-back end stack on our local Windows 10 machines and use Apple Pay for local testing of changes without setting up lots of proxying to macOS and iOS test devices?

Well luckily in JavaScript it’s quite simple to add a polyfill to a browser to provide a native API where there would otherwise not be one available. So that’s what we did.

You can find it in a here on GitHub.

Effectively the polyfill provides the ApplePaySession object if it does not already exist, and functions in a way that makes the functions behave as if Apple Pay is available on the current device and chains the events and their handlers together to make it appear that a user is interacting with the Apple Pay sheet.

Of course it is no substitute for testing with a real device, but the polyfill provides enough of an implementation to test feature detection (i.e. only adding the button if Apple Pay is supported) and the server side implementation for fetching and rendering the basket, performing merchant validation, and passing on a valid sandbox payment token.

You can get a valid payment token for a sandbox transaction that you can embed within your own copy of the Polyfill by adding some JavaScript logging to print out the text representation of the object passed as the event parameter to the onpaymentauthorized function, as well as populating it with some appropriate billing and payment contact details.

We use the polyfill for testing in our QA environments by loading it into the browser via a script tag in our checkout-related pages where the Apple Pay button would appear.

Deployment

So we’ve got our new service, and we’ve integrated it into our website and it’s all working locally. Now it just needs deploying to our QA environments for testing, and then eventually onto our production environment.

We have our own deployment pipeline here at Just Eat that sets up deploying IIS applications from ZIP packages and we also build our own custom AWS AMIs to deploy our services onto, so that’s all taken care of by our Platform Engineering team.

Our AMIs do not yet have .NET Core installed on them though, so if we tried to use the deployed in IIS it would return an HTTP 502. That’s easy enough to resolve though, we just need to make a new AMI with .NET Core on it.

This is nice and easy as Chocolatey provides packages for both the .NET Core runtime and the Windows Server Hosting installer for IIS hosting.

Now there’s just a few more things we need to do to get our feature ready to run:

  1. We need to set the ASPNETCORE_ENVIRONMENT environment variable so that the application runs with the right configuration
  2. We need to set up the registry hives required for the ASP.NET Core data protection system (used for things like antiforgery tokens)
  3. We need to adjust the App Pool configuration



Our deployment process already provides us with hooks to run PowerShell scripts post-deployment, so we just need to write some small scripts to do the steps.

Setting the environment name

We can set the environment name machine-wide because we deploy each service on its own EC2 instance. There are other approaches available, like setting environment variables in the ASP.NET Core Module, but this was simpler:

Configuring the App Pool

We also need to amend the IIS App Pool for the website to disable the .NET Framework (because we don’t need it) and to load the user profile so we can load the private keys in our Merchant Identifier Certificates.

Setting Up Data Protection

The process for setting up Data Protection for IIS, which in turn provides a link to a PowerShell script, can be found here.

After these three steps are done, then IIS just needs to be restarted (such as with iisreset) to pick up the configuration changes.

The (Apple) pay off

So now with Apple Pay integrated into our website, it’s possible for the user to pay using the cards loaded into Wallet on either their iPhone running iOS 10 or their Apple Watch running watchOS 3 when paired with a MacBook running macOS Sierra.

iPhone payment flow

At the start of the checkout flow the user is prompted to select what time they would like their food delivered for (or be ready for collection) and an optional note for the restaurant.

At first the user is shown the Apple Pay button in additional to the usual button to continue through checkout to provide their delivery and payment details.

The user taps the Apple Pay button and the Apple sheet is displayed. Then the user selects their payment card as well as their delivery address. While this happens we asynchronously validate the merchant session to enable TouchID to authorize payment as well as validate that the restaurant selected delivers to the postcode provided by the user in the case of a delivery order.

Once the user authorizes payment with their finger or thumb, the sheet is dismissed, they are logged in to a guest account if not already logged in, and redirected to the order confirmation page.

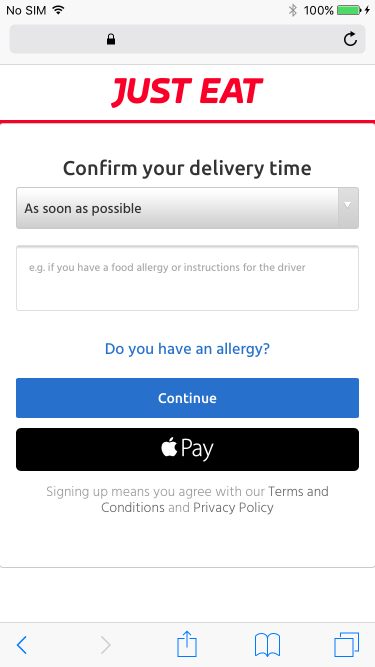

The Apple Pay button displayed during checkout in Safari on iOS 10.

The Apple Pay button displayed during checkout in Safari on iOS 10.

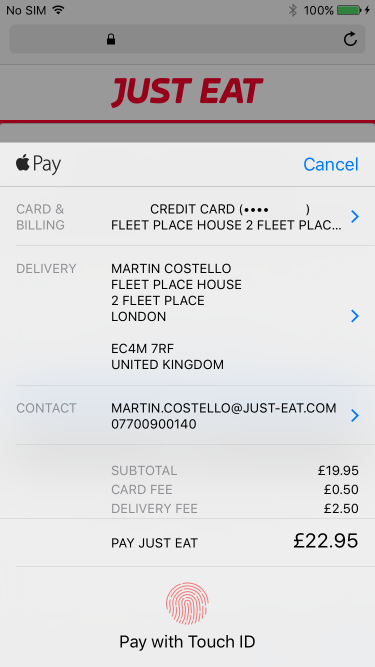

The Apple Pay payment sheet in iOS.

The Apple Pay payment sheet in iOS.

macOS payment flow

At the start of the checkout flow the user is prompted to select what time they would like their food delivered for (or be ready for collection) and an optional note for the restaurant.

Here the user is shown the Apple Pay button in additional to the usual button to continue through checkout to provide their delivery and payment details.

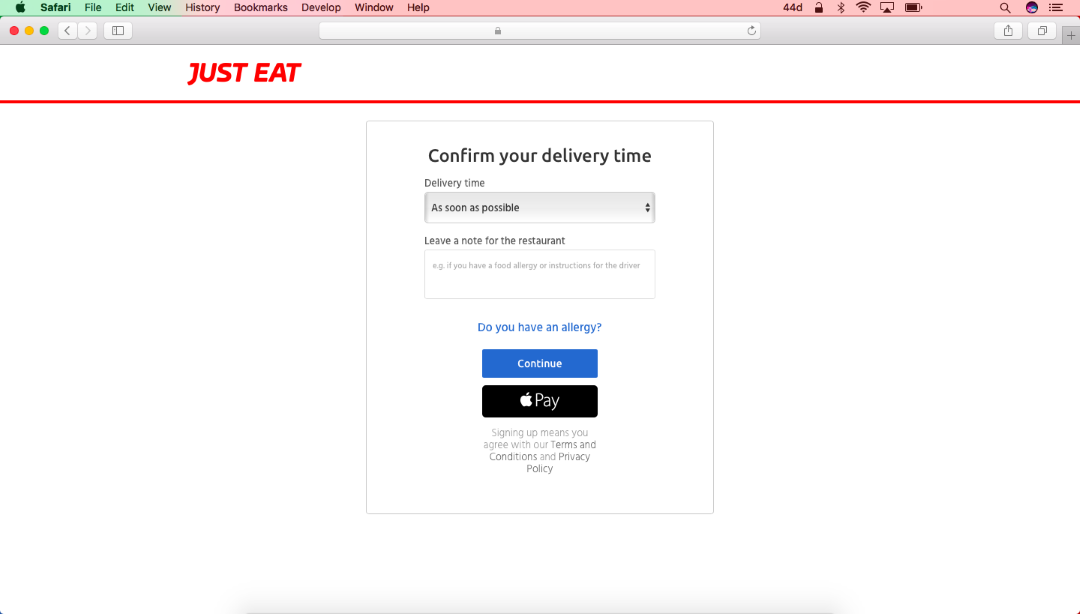

The Apple Pay button displayed during checkout in Safari on macOS Sierra.

The Apple Pay button displayed during checkout in Safari on macOS Sierra.

The user clicks the Apple Pay button and the Apple sheet is displayed. The user selects their payment card as well as their delivery address. While this happens we asynchronously validate the merchant session to enable the ability to authorize payment using an iPhone, iPad or Apple Watch paired with the signed in iCloud account, as well as validate that the restaurant selected delivers to the postcode provided by the user in the case of a delivery order.

The Apple Pay payment sheet in macOS Sierra.

The Apple Pay payment sheet in macOS Sierra.

Once the merchant session is validated, the user is then prompted to authorize the payment on their paired device, for example using either an iPhone with TouchID or an Apple Watch.

Payment confirmation for a purchase from macOS using Touch ID on an iPhone.

Payment confirmation for a purchase from macOS using Touch ID on an iPhone.

Payment confirmation for a purchase from macOS using Apple Watch.

Payment confirmation for a purchase from macOS using Apple Watch.

Once the user authorizes payment with their finger or thumb with TouchID or by pressing a button on their Apple Watch, the sheet is dismissed, they are logged in to a guest account if not already logged in, and redirected to the order confirmation page.

Now the user just needs to wait for their food with their inner food mood to be prepared.

Example integration

An example integration of Apple Pay JS adapted from our own implementation is available on GitHub. You should be able to use it as a guide to implementing Apple Pay into your website by viewing the JavaScript for creating an ApplePaySession and the C# for validating a merchant session. Also, provided you have an Apple Developer account so that you can generate your own merchant identifier and the associated certificates, you should also be able to run it yourself and see Apple Pay in action.

Conclusion

We hope you’ve found this post about how we brought Apple Pay to the Just Eat website informative and interesting, and that the example integration is a useful resource if you’re thinking about implementing Apple Pay into your own e-commerce solution yourself.

It’s been an interesting SDK to integrate with a number of challenges along the way, but we’ve also learned a lot in the process, particularly about Apple Pay itself, as well as the differences between ASP.NET and ASP.NET Core (the good and the not so good).

Just Eat is here to help you find your flavour, and with Apple Pay as a payment option in our website now, we hope you’ll now be able to find it even easier!

1392 views

The journey of Apple Pay at JUST EAT

Introduction

Apple Pay has recently been released in UK and at JUST EAT we worked on the integration in the iOS app to better support all of our customers and to ease the experience to both existing and new users. Until version 10 of our iOS UK app, the checkout for completing an order was wrapped into a webview and the flow was as follows:

old web checkout flow

Since Apple pushes developers to implement Apple Pay in a way that the checkout doesn’t force the user to log in the checkout flow had to be reworked, and we took the opportunity to make the majority of the checkout flow native. This enabled us to support both checkout flows:

    • standard checkout (now with a more native flavour)

standard checkout flow

    • Apple Pay checkout

apple pay checkout flow

The latter is clearly a fantastic solution for completing the checkout in very few steps with a great and simple UX. Thanks to the information provided by Apple Pay (inserted by the user when registering a debit/credit card) the user details native screen is no longer necessary and more importantly for the user, there is no need to log in to the platform.

A further detail on the checkout is that we support two different so-called “service types” for the orders: delivery and collection. Defined as so:

On a side note, these changes soon became a challenge during the development as JUST EAT need to treat Apple Pay users (guest users) in a similar manner to users that have registered previously to our service.

How we designed around Apple Pay

At the time of writing there are already a few very good articles about a basic integration with Apple Pay. Probably the best reference worth mentioning is the NSHipster post.

Clearly also the Apple Documentation is a great start and the “Apple Pay Within Apps” video from WWDC 2015 explains really clearly all the relevant steps to have your app ready for Apple Pay.

Rather than discussing the basic concepts (creating the merchant ID, configuring the PKPaymentRequest  object, handling the presentation of the PKPaymentAuthorizationViewController , sending the token to the Payment Service Provider, etc.), we think it’d be more useful to walk you through the architectural aspects we considered when designing the solution on iOS using Objective-C.

In the architecture we are proposing, the relevant components for handling an Apple Pay payment are the following:

  • ApplePayService
  • ApplePayPaymentHandler
  • ApplePayPaymentRequestFactory



Some additional components are also present in the big picture:

  • CheckoutService
  • ABRecordRefConverter
  • PaymentFlowController



We haven’t used the iOS SDK provided by our PSP (Payment Service Provider) to communicate directly to it from the iOS app, but rather we rely on a payment API to complete this communication.

At JUST EAT we like dependency injection and composition when possible. Developing this new feature with these concepts in mind helped to develop components that are isolated, easily pluggable, easy to test and (sometimes) reusable.

The above components have well-defined responsibilities. We’ll provide simplified code for the interfaces. Let’s go through them in a constructive order:

N.B. Don’t be alarmed if you see the usage of the JEFuture  or the JEProgress  symbols. Lots of parts in our codebase rely on JustPromises (the library about Future and Promises we open sourced on GitHub). You’ll also see the usage of some DTOs and the JE  prefix.

  • CheckoutService: responsible for handling the basic flow for the checkout. This is very much platform dependant. It could include the logic to perform the necessary actions in the backend to prepare the order to be completed with Apple Pay. In our case we need to store the user delivery notes (things like “The door bell doesn’t work please call me when you arrive.”) and the preferred time for the delivery.

  • ApplePayPaymentRequestFactory: responsible for creating the PKPaymentRequests representing a transaction. In our case objects of this kind are initialised with a delivery method and a card fee. The input parameter for the method returning a PKPaymentRequest  is a representation of the basket.

You might wonder why summaryItemsForBasket:  is public rather than keep it private. The reason is related to the fact that the block parameter of paymentAuthorizationViewController:didSelectShippingAddress:completion:  has the following signature:

It might very well be that some items are not available to be shipped to a specific address, and therefore we need a way to provide the updated list of summary items for the new shipping address the user selected.

  • ApplePayPaymentHandler: objects of this class are responsible for handling the payment from beginning to end. It’s initialised with a CheckoutService  that covers the initial part of the flow (i.e. the steps that happen with the standard checkout). A PKPaymentRequest  and a basket representation are provided (along with some other minor details) to objects of this class when asked to actually process a payment.

  • ApplePayService: this service is responsible for implementing the PKPaymentAuthorizationViewControllerDelegate  protocol, for checking if Apple Pay is enabled on the device and for cancelling the payment (if it’s not too late). It’s initialised with a view controller (used to display the PKPaymentAuthorizationViewController ), a JEApplePayPaymentRequestFactory  and a JEApplePayPaymentHandler . The logic for handling the selection of shipping address or the shipping method is here.

  • ABRecordRefConverter: just a bunch of class methods for isolating the logic for transforming the ABRecordRef  to easy-to-use DTOs. Until iOS 8.4, the delegate method paymentAuthorizationViewController:didSelectShippingAddress:completion:  of PKPaymentAuthorizationViewControllerDelegate  provides a ABRecordRef . Starting with iOS 9.0, this method is depracated and a similar one using a wrapper object ( PKContact ) on top of the Contacts framework is used. ABRecordRefConverter  basically does the work that Apple did for us in iOS 9.

Similar to what happened in the ApplePayPaymentRequestFactory , you might wonder why the addressForABRecordRef:  method is necessary. The reason is that the second parameter of paymentAuthorizationViewController:didSelectShippingAddress:completion:  is an  ABRecordRef  populated with only the address information for privacy reasons.

  • PaymentFlowController: it is responsible for creating the necessary stack and interactions between of all the above components. It acts as the delegate of the ApplePayService  to handle the navigation flow and it should be intended to be the starting point and glue around our standard checkout flow and the Apple Pay one.

We strongly believe in unit testing (and automation and integration testing as well) and we strive to cover our code with the necessary tests for every new feature we develop. Payments are clearly a hot topic and a crucial part of our business, therefore structuring this feature in small and separated components allowed us to easily keep the code coverage for the above components close to 100%.

PKPaymentRequest’s pitfalls

The way the payment request is populated dictates what the Apple Pay sheet will display. How to populate the shipping and billing address properties is not completely straightforward. An excerpt of code we have in production is as follows:

Using the above configuration the Apple Pay sheets for delivery and collection orders appear like so:

ap_delivery_sd    ap_collection_sd

Note that, in the case of collection orders, even if we set the requiredShippingAddressFields  property to something meaningful (which isn’t PKAddressFieldNone ), the associated cell in the sheet is not displayed.
At JUST EAT we need to know upfront if the order is for delivery or collection in order to let the user fill the basket accordingly (e.g. some items might not be available for delivery) and for this reason we couldn’t leverage the built-in capabilities of Apple Pay to handle different shipping methods. Moreover, since Apple defines the shipping type like so:

for collection orders the correct value to use would be PKShippingTypeStorePickup  but the address of the store must be present in the list of addresses the user has entered on the device. This isn’t practical.

Going back to how the payment request is configured, it’s critical for JUST EAT to have the phone number and the email of the customer in order for customer services to contact them in case something goes wrong with the order. This applies to delivery orders as well as collection orders. At first we thought that, since for collection orders the shipping address was not necessary, the property requiredShippingAddressFields  of the PKPaymentRequest  could be set to PKAddressFieldNone  and we could grab the phone number and email from the billingAddress  property.
Unfortunately, even setting the requiredBillingAddressFields  to PKAddressFieldAll  when fetching the info from the billingAddress  property of the PKPayment  the phone number and email values are not there. Crucially, to grab the necessary order details info we had to merge the information provided by the two properties ( billingAddress  and shippingAddress ) as so:

Integration considerations

From our journey into the Apple Pay world we learned that Apple pushes a lot for the Apple Pay button to be prominent in your app’s UI. Unless one starts an iOS application from scratch and provides only Apple Pay as a payment method, other methods are usually already available (cards, PayPal, etc.): showing the Apple Pay button as big as the other buttons leading to different payments is almost a mandatory requirement from Apple. Showing the button as a first option is equally important.

What is not so mandatory, but still very nice to have, is to provide the user with the ability to complete the checkout without logging in. This is a good thing for a few reasons:

  • remove the friction and enable happy paths to help your customers pay quicker
  • no need to collect data from the user any more leveraging what’s already provided by Apple Pay
  • Apple and customer happiness

As in our case, this is far from being trivial and logic in the backend usually needs to be tweaked accordingly to support what we call “guest” or “anonymous” users.

On a side note, it wasn’t completely clear from the beginning that the ABRecordRef  object provided in the paymentAuthorizationViewController:didSelectShippingAddress:completion:  delegate method does not contain the full user data but just the address, but that is sufficient information to calculate the shipping cost and the availability of the items to a specific address. The entire user information is provided in the PKPayment  object via the shippingAddress  and billingAddress  properties once the user authorised the payment.

In iOS9 the API slightly changed mainly due to introduction of the Contacts framework and the deprecation of the AddressBook one. PassKit provides a new class PKContact  that is a wrapper around objects from the Contacts framework. This means that the following properties of PKPayment  objects:

are deprecated in favour of the following new ones:

This will help a lot since the old ABRecordRef  is defined as a CFTypeRef  and the related APIs are not easy to consume in an object-oriented world.

iOS
